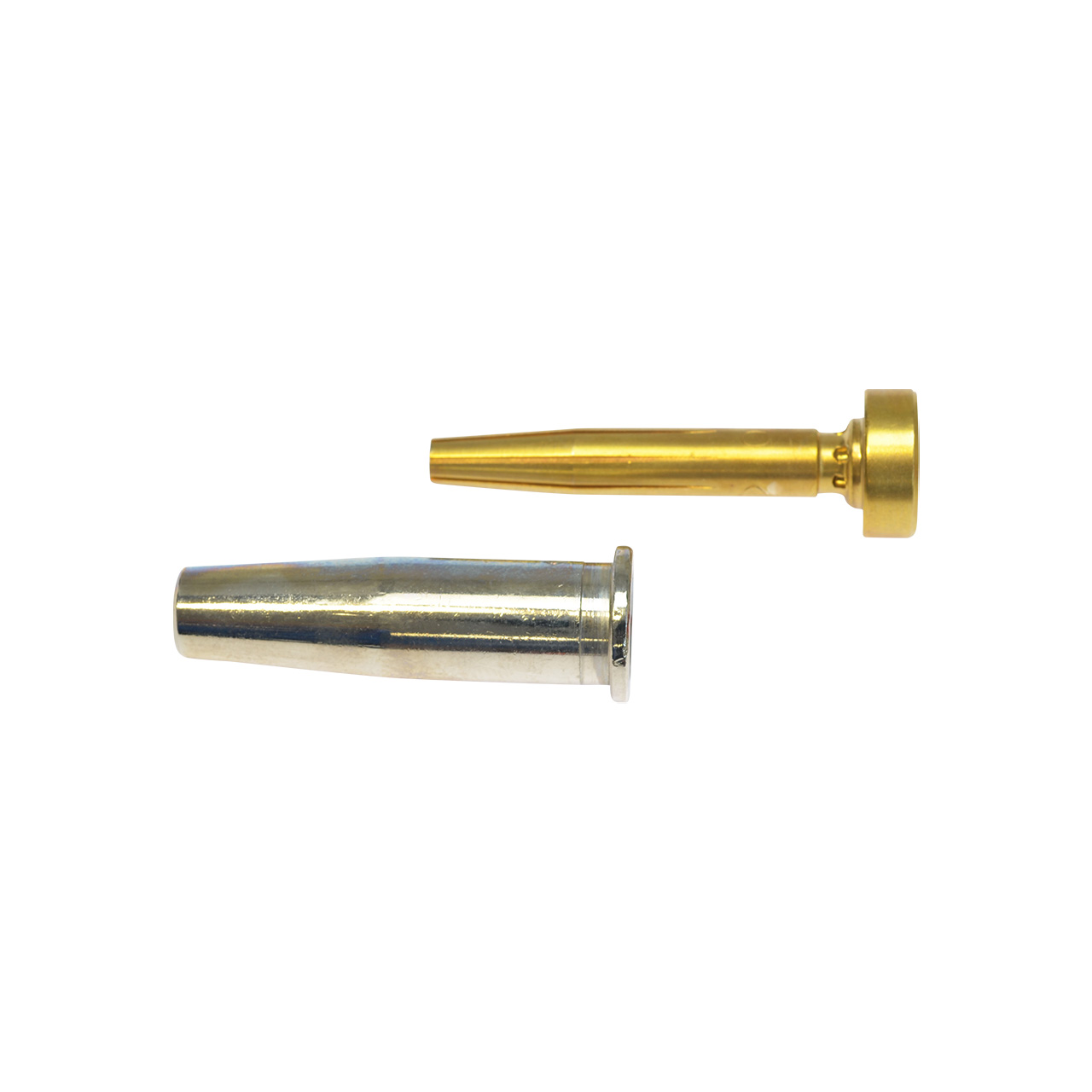

HARRIS 6290-AC00 Schneiddüse für Azetylen
15,47 €*
Inhalt:
1 Stück
Versandfertig in 5 Tagen, Lieferzeit 1-3 Tage
Produktnummer:
525290
EAN:
4015833892926
Hersteller-Nummer:
6290-AC00
Produktinformationen "HARRIS 6290-AC00 Schneiddüse für Azetylen"
6290-AC Schneiddüsen für Azetylen
Schneidbereich | Sauerstoffdruck | Brenngasdruck-Gleichdruckbrenner | Brenngasdruck-Injektorbrenner |
2 - 10 mm | 1,0 - 2,0 bar | 0,3 - 0,8 bar | 0,015 - 0,2 bar |
10 - 15 mm | 1,5 - 2,5 bar | 0,3 - 0,8 bar | 0,015 - 0,2 bar |
15 - 25 mm | 2,0 - 3,5 bar | 0,3 - 0,8 bar | 0,015 - 0,2 bar |
25 - 50 mm | 3,0 - 4,5 bar | 0,3 - 0,8 bar | 0,015 - 0,2 bar |
50 - 100 mm | 3,0 - 4,5 bar | 0,3 - 0,8 bar | 0,015 - 0,2 bar |
100 - 175 mm | 3,5 - 5,5 bar | 0,3 - 0,8 bar | 0,015 - 0,2 bar |
175 - 250 mm | 4,5 - 5,5 bar | 0,3 - 0,8 bar | 0,015 - 0,2 bar |
250 - 300 mm | 5,0 - 6,5 bar | 0,3 - 0,8 bar | 0,015 - 0,2 bar |
Größe | AC 00 |
---|---|
Materialstärke | 2 - 10 mm |
Hersteller (gem. GPSR Produktsicherheitsverordnung) | Harris Deutschland NL der Lincoln Electric GmbH, Beethovenstraße 9, 88450 Berkheim, Germany, info@harriscal.de |
---|
